Alchem Incorporated
314 East 195th St.
Euclid, Ohio 44119
alchem@en.com
Bow & Buck By Bill Barton

New customers should follow this link for general ordering and shipping information


Order Form Link



Crossbow Parts
Alchem serves as a reseller of finished prods and strings, and a machining service providing rough unfinished parts to crossbow manufacturers. We do not manufacture archery equipment, finished crossbows, or kits. Links to recommended manufacturers of these items may be found at the bottom of this page. The following is a list of materials and parts we currently supply. Many items are in stock and ready for immediate delivery. Others are produced in response to orders. Additionally we can supply some custom parts in large or small quantities. For a quote, submit a drawing and specifications. Please allow up to 6 weeks for delivery of custom orders.

Our crossbow prods now come with a six inch length of heat shrink tubing serving as a safety strap "sichern". These extend form the center of the prod outward, three inches on both sides. Safety straps are intended to reduce the chance of the shooter or a bystander being injured by a broken limb. Breakage, if it occurs, is nearly always confined to the area of maximum stress, from the center of the prod, to an inch or so beyond the point where the prod presses against the stock. This tubing should not be removed, since to do so creates a danger of injury to the user. If necessary, the safety strap may be covered with leather or some similar flexible material.

Prods
The below listed items are made of high carbon spring steel which has been precisely hardened and tempered for optimal strength and durability. These are available in mill black or plain steel finish. Prods are shipped black and treated to resist rust unless otherwise requested. All models are available in a range of draw weights. When ordering, please specify the approximate weight desired and we shall match your request as closely as possible. Most of our models are designed for a recommended draw of 8 inches from a 3 1/2 inch brace. In other words, allow 11 1/2 inches from the mounted prod to the fingers of the release. These prods with model numbers beginning in 1, 2, or 3 use a 27 inch Dacron B50 string. The exceptions are models beginning with the numbers 6 or 7. Model 6 prods are designed for a recommended draw of 9 3/4 inches from a 5 inch brace. This equals a total distance of 14 3/4 inches from the center of the belly of the prod to the fingers of the release. Model 6 prods work fine as a replacement for the original aluminum prods on old Powermaster crossbows and require a 31 inch Dacron B50 string. Model 7 prods are designed for a recommended draw of 9 1/2 inches from a 4 inch brace. This equals a total distance of 13 1/2 inches from the center of the belly of the prod to the fingers of the release. Model 7 prods work fine as replacements for many Barnett crossbows such as the Commando or Wildcat and the many Asian copies of the Wildcat. Model 7 prods require a 30 1/4 inch string. Regardless of model a greater draw length than recommended should be avoided since this may lead to premature breakage of the part. For more detailed draw weight calculations and charts, go to our draw weight data page.



MODEL THICKNESS LENGTH* WIDTH C WIDTH T TIP
RISE
APPROXIMATE DRAW
WEIGHT IN POUNDS
OVERALL DRAW
IN INCHES
PRICE EACH** SHIPPING WEIGHT
1316 3/16" 28 1/2" 1 11/16" 11/16" 1/2" 120 to 140 @11.5" 11.5" $65 ($60 foreign) 1.68 lbs (.76 kg)
1732 7/32" " " " " 190 to 225 @11.5" 11.5" $65 ($60 foreign) 1.96 lbs (.89 kg)
2316 3/16" " 1 3/16" 1/2" " 90 to 110 @11.5" 11.5" $65 ($60 foreign) 1.25 lbs (.57 kg)
2732 7/32"" " " " 1/2" 135 to 180 @11.5" 11.5" $65 ($60 foreign) 1.25 lbs (.57 kg)
3316 3/16" 28 1/2" 1" 3/8" 1/2" 60 to 90 @11.5" 11.5" $65 ($60 foreign) 1.25 lbs (.57 kg)
3732 7/32" 28 1/2" 1" 3/8" 1/2" 115 to 140 @11.5" 11.5" $65 ($60 foreign) 1.25 lbs (.57 kg)
6316 3/16" 34" 1" 3/8" 0 50 to 70 @14.75" Powermaster 14.75" $65 ($60 foreign) 1.25 lbs (.57 kg)
6732 7/32" 34" 1" 3/8" 0 80 to 110 @14.75" Powermaster 14.75" $65 ($60 foreign) 1.25 lbs (.57 kg)
7416 4/16" 31.25" 1" 3/8" 0 125 to 175 @13.5" Barnett 13.5" $65 ($60 foreign) 1.25 lbs (.57 kg)

**(These prices include shipping to US addresses. Orders to be shipped to addresses outside the United States must have international shipping added. Our prods are all longer than 24 inches and must be shipped priority air. Follow this link for Global Parcel Post charges.)

The following PayPal shopping cart buttons include estimated shipping charges. If you order several crossbow prods and overpay, the excess shipping charges will be refunded.


Model 1316: To US To Canada Other Countries
Model 1732: To US To Canada Other Countries
Model 2316: To US To Canada Other Countries
Model 2732: To US To Canada Other Countries
Model 3316: To US To Canada Other Countries
Model 3732: To US To Canada Other Countries
Model 6316: To US To Canada Other Countries
Model 6732: To US To Canada Other Countries
Model 7416: To US To Canada Other Countries

Strings
Dacron B50 strings are now available to fit all of our prods. Remember to specify the model of prod when ordering. Strings sell for $14.00 if ordered and shipped with a prod or $15.00 if ordered alone. This price includes postage to customers in the US. Strings are available to foreign customers at a price of $14.00, but only when shipped along with another item.
String (shipped with prod)
String (shipped alone): To US

Release Levers & Roller Nuts
Rough cut steel release lever blanks identical to the one depicted on our plan below are available for $16.00 if ordered with a prod, or $18.00 if ordered alone. This price includes postage to customers in the US (Foreign customers pay $15.00 and add Global Parcel Post charges. Shipping weight 0.25 lbs (.11 kg).
Lever (shipped with prod): To US To Canada Other Countries
Lever (shipped alone): To US To Canada Other Countries

1 1/2" (38mm) diameter natural (off white) ABS plastic rod, cut and faced to a length of 1" (25mm) is available for making release roller nuts. These sell for $3.80 if ordered and shipped with a prod, lever or bow irons, or $4.00 if ordered alone. This price includes postage to customers in the US. Lengths are available to foreign customers at a price of $3.80, but only when shipped along with a prod, lever or bow irons.
1 1/2" diameter ABS rod (shipped with prod, lever, or irons) US & Foreign customers:
1 1/2" diameter ABS rod (shipped alone) US customers:


Claplock Release Mechanisms & Levers
Unfinished steel claplock release mechanisms, similar to the one depicted on our plan below, are available for $16.00 if ordered with a prod, or $18.00 if ordered alone. These consist of a clapper, hinge plate, and hinge pin. The purchaser must cut the sear to the required length and fabricate any necessary springs. This price includes postage to customers in the US (Foreign customers pay $15.00 and add Global Parcel Post charges. Shipping weight 0.25 lbs (.11 kg).
Claplock mechanism (shipped with prod):
To US To Canada Other Countries
Claplock mechanism (shipped alone):
To US To Canada Other Countries

Rough cut steel claplock release lever blanks (trigger bars), similar to the one depicted on our plan below, are available for $16.00 if ordered to be shipped with a release mechanism, or $18.00 if ordered alone. This price includes postage to customers in the US (Foreign customers pay $15.00 and add Global Parcel Post charges. Shipping weight 0.25 lbs (.11 kg).
Claplock lever (shipped with mechanism):
To US To Canada Other Countries
Claplock lever (shipped alone):
To US To Canada Other Countries

Bow Irons

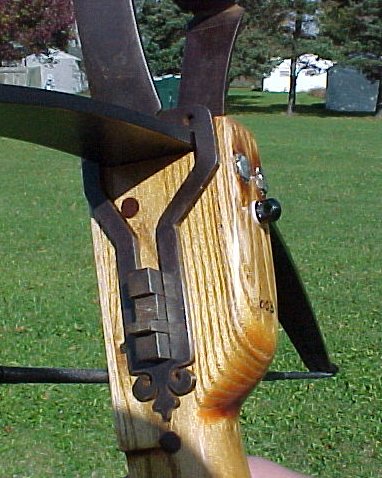

A photo of our bow irons in use may be seen by clicking here. These are shipped as sets consisting of 2 side plates, 2 blocks, 2 wedges and a stirrup. Sets are rough cut and require customization and finishing. These are designed to fit tillers from 1 1/2 inches to 2 1/4 inches thick. Sets sell for $32 with stirrup or $27 without. Stirrups alone sell for $7. This price includes postage to customers in the US (Foreign customers deduct $1 from the previous prices and add Global Parcel Post charges. Bow irons are available to fit either model 1 or model 2 prods. The wider model 1 irons will accommodate prod models 1, 2, 3, and 6. The narrower model 2 irons will accomodate prod models 2, 3, and 6. Bow irons should not be used with Fast Flite string. Shipping weight 1.20 lbs (.54 kg).
Bow Irons:
To US To Canada Other Countries
Bow Irons (shipped with prod or release):
To US To Canada Other Countries
Bow Irons With Stirrup:
To US To Canada Other Countries
Bow Irons With Stirrup (shipped with prod or release):
To US To Canada Other Countries
Stirrup:
To US To Canada Other Countries
Stirrup (shipped with other item):
To US To Canada Other Countries


Order Form Link



Free Printable Plans

Build a crossbow with the Alchem Crossbow Plan
Front-(cord-bound) Front-(bow-irons) Mid Back Notch-Lock Clap-Lock Roll-Nut-Lock


Build an SCA combat crossbow with the Alchem Crossbow Plan
Front-(cord-bound) Mid




Discussions And Answers To Construction Questions

The Arbalist Guild Discussion Forum



Recommended Manufacturers

Order custom crossbow bolts from Gary Kingston

Order a finished crossbow from New World Arbalest

Order a finished crossbow from Slobows

Order a finished crossbow from Gavins Archery Shop

Crossbow accessories from Matuls in Poland



Miscellaneous Items



SCA Archer's Rings Link

Archer's Knives And Swords Link

Visit The Schutzenfest page
